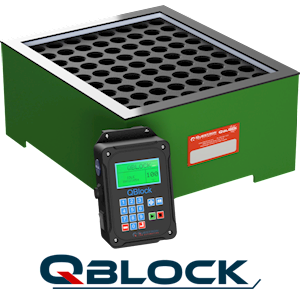

QBlock Digestion Block

Price Varies

SKU:

QBlock

The QBlock digestion/heating block series provides a wide selection of options to choose from providing increases in efficiency of digestion and sample throughput. The Teflon coated graphite block and enclosure provides ability to produce contamination free results. Modular approach for touch screen base temperature controller helps increase life span of system and provides total control over 8 QBlock simultaneously.

Teflon coated Graphite and anodized Aluminium heating block
Fast and uniform heating from ambient to 400°C
Excellent temperature uniformity of + 1 °C over all QBlock wells
Thermally secured across 5 sides thus conserving energy
Remote electronics controls
Choice of chemical resistant block housing

Rugged Teflon coated metal
Engineered plastic

Adequate temperatures for tri-acid treatment (the only digestion block on the market)
Non-contaminating heat-sustainable Teflon®-coated sample vial carrying tray
Individual control over diverse groups of Samples in multiple QBlocks, resulting in increased lab efficiency
Upgradable to automated reagent delivery and sample work-up

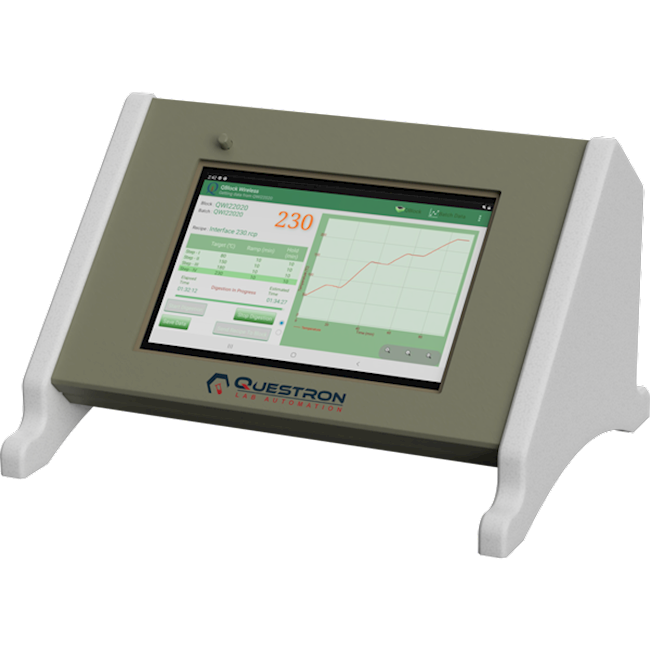

Optional Wireless Controller

Control up to 8 QBlocks
Distance up to 50M
Real-time graphs of digestion
PC Connectivity for data access
Built-in NIST Traceable calibration

Standard Configurations (Custom configurations are possible)

Vial (Vial OD)	Positions	Unit Dimensions (cm)
15mL (15mm)	72	39 x 33
25mL Vial (21mm)	72 / 92	39 x 33 / 43 x 39
50mL Vial (30mm)	56 / 72 / 90	43 x 39 / 46 x 39 / 48 x 55
100mL Tube (30mm)	56 / 72/ 90	43 x 39 / 46 x 39 / 48 x 55
100mL Beaker (46mm)	20 / 30	39 x 33 / 46 x 39
